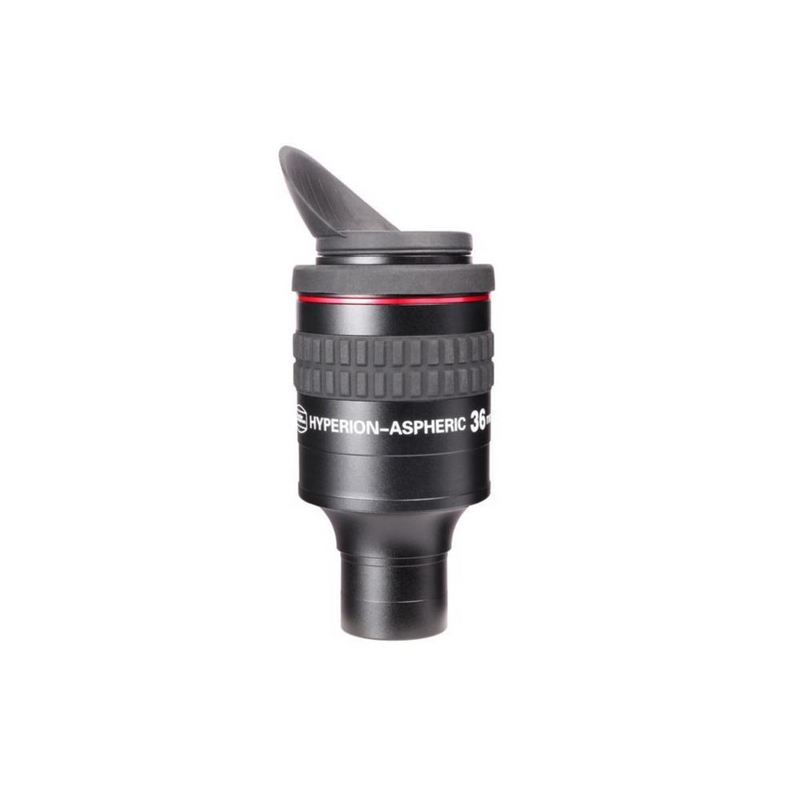

Baader 36mm Hyperion Aspheric Eyepiece - 1.25" & 2"

Brand: Baader

SKU : BA-HYP-36

- Read
Looking for a Baader 36mm Hyperion Aspheric Eyepiece - 1.25" & 2"? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

  • Aspheric surfaces used within these exemplary new eyepieces utterly eliminate eyepiece aberrations in a much cleaner and more efficient way than was previously possible
  • Designed with projection imaging optimization in mind and were created to be compatible with all Hyperion Digital T-Rings
  • Design makes very efficient use of 2"X24tpi SCT threads with the 2" barrel

Product Details

  • Baader has taken wide field eyepieces to a new level with the Hyperion 36mm Aspheric Eyepiece, bending their considerable technical expertise towards the creation of a refined and effective wide field eyepiece. The aspheric surfaces used within these exemplary new eyepieces utterly eliminate eyepiece aberrations in a much cleaner and more efficient way than was previously possible, bypassing such pitfalls as extra lens elements, excessive size, and weight, or higher cost.

    Baader's Hyperion Aspheric eyepieces have been designed with projection imaging optimization in mind and were created to be compatible with all Hyperion Digital T-Rings. This means that the Hyperion Aspheric Eyepiece can be attached to an incredibly wide array of cameras as well as telescopes. The design makes very efficient use of 2"X24tpi SCT threads with the 2" barrel. This feature allows these splendid eyepieces to attach directly onto the rear cell of most SCT's for maximum imaging rigidity.

    Additional Specifications
    FIELD STOP DIAMETER 45 mm (2"), 30mm (1¼")
    FIELD STOP DISPLACEMENT TO REFERENCE PLANE +/- 0 mm
    NUMBER OF LENS ELEMENTS 6
    NUMBER OF GROUPS 4
    SLIP PROTECT SAFETY Classic Undercut
    EYEPIECE BODY ABOVE REFERENCE PLANE (MM) 84.7 mm
    LENGTH OF 1.25" BARREL (MM) 23.9 mm
    LENGTH OF 2" BARREL (MM) 27.5 mm
    OUTER DIAMETER 59.5 mm
    CAMERA THREAD M43, SP54
    THREADED FOR FILTERS Yes

  • specifications

    Dust Caps IncludedYes
    Eye Guard IncludedYes
    Eye Relief20mm
    Eyepiece Diameter59.5mm
    Eyepiece OpticsHyperion Aspheric
    Field of View72 degrees
    Field Stop46mm
    Focal Length36mm
    Free ShippingYes
    ManufacturerBaader
    ModelBaader Hyperion Aspheric
    Number of Elements6
    Size1.25"
    Size2"
    Warranty1 Year Warranty
  • included items

    • Baader 36mm Hyperion Aspheric Eyepiece - 1.25" & 2"
    • 1.25" dustcap (31,8mm), 2" dustcap (45mm), 2" dustcap (46.5mm - fits over eyecup)
    • Folding eyecup (M43)
