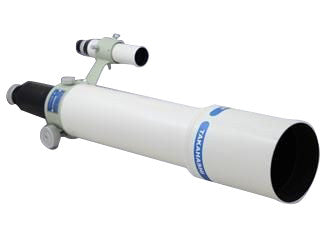

Takahashi FC-76DS - 76mm f/7.5 Doublet Fluorite APO Refractor

Brand: Takahashi

SKU : TK-TFK07630

- Read
Looking for a Takahashi FC-76DS - 76mm f/7.5 Doublet Fluorite APO Refractor? Shop this product at Agena Astro by clicking the SHOP NOW button!
SHOP NOW
Add to Wishlist

Request stock alerts and we'll let you know when the item is back in stock

Got questions? Click for live chat

Product Details

  • About the Takahashi FC-76 Doublet Fluorite Refractor Series

    The Takahashi FC-76 Series is an updated version of the original from 1980. The multi-coated fluorite rear lens and eco-glass front element provides maximum light transmission. The design takes advantage of the advances in high resolution digital imaging. The advanced design allows the focal length to be reduced by 30 mm 594 mm at f/7.8.

    About the Takahashi FC-76DS Doublet Fluorite Refractor

    The FC-76DS model features a the Sky-90 2.6 focuser to better hold imaging packages which include DSLRs and CCD cameras with filter wheels. An optional dedicated flattener as well as extender are available to further enhance the capabilities of the FC-76DS. A sliding dew shield is also included and a larger OD 90 mm tube is standard.

    The optional dedicated reducer changes the focal length to 417 mm with a focal ratio of f/5.5 and an image circle of 36 mm. The dedicated flattener operates at f/7.8 and 594 mm produces a 40 mm flat circle. This telescope is exceptionally well-suited for solar eclipse imaging and can be carried by the Teegul Sky Patrol III or larger PM-1mount. When picking out accessories for any Takahashi telescope, a system chart is of great use.

    Takahashi FC-76DS Specifications

    • Design: Doublet fluorite apochromat
    • Diameter: 76 mm
    • Focal ratio: f/7.5
    • Tube diameter: 95 mm
    • Tube length: 550 mm
    • Weight: 6.6 pounds
    • With Dedicated reducer:
    • Focal ratio: f/5.5
    • Focal length: 417 mm
    • Image circle: 36 mm
    • With Dedicated Flattener:
    • Focal ratio: f/7.8
    • Focal length: 594 mm
    • Image circle: 40 mm



    OPT Product Number: TK-TFK07630

  • specifications

    Aperture76 mm (3")
    Camera/Eyepiece Connection1.25" Nosepiece
    Dawes Limit1.53 arcseconds
    Focal Length570 mm
    Focal Ratiof/7.5
    Highest Magnification152x
    Light Gathering Power118x
    Limiting Magnitude13.2
    Optical DesignDoublet Refractor
    Tube Diameter95mm
    Tube Length567mm
    Tube Weight6.6 lbs
    Warranty5 Year Warranty
